Ariens PWKA1636S

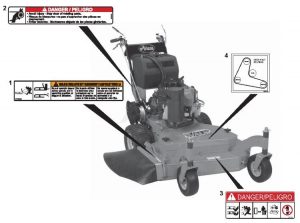

Decals Safety
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 7742300 | Decal, Warning | ||
| 2 | 5236900 | Decal-Danger-Belt Rotating | ||
| 3 | 7731400 | Decal, Mower Pan Danger | ||
| 4 | 200470 | Decal, Deck Belt Routing | (988811) | ||
| 200471 | Decal, Deck Belt RT 48in. | (988812) |

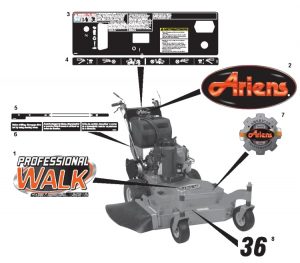

Decals Style
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 4306300 | Decal, Ariens Walk | ||
| 2 | 7800337 | Decal, Ariens Jewel | ||
| 3 | 7700022 | Decal, Console Acao GWK 2011 | ||
| 4 | 5356700 | Decal, Steer Lvrs (Gear) | (Gear) | ||
| 5 | 5237000 | Decal-Shift Lever | ||
| 6 | 5361500 | Decal - Declutch - Gear | ||
| 8 | 4278200 | Decal, Deck Size, 36in. |

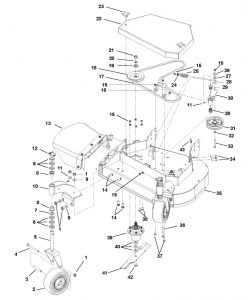

Deck Assembly 36 inch
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 964015 | Locknut, 1/2-13 Nyloc Y | ||
| 2 | 7100302 | Assembly, Wheel And Tire 9X3.5 | ||
| 3 | D13003 | Tube, Caster Axle | ||
| 4 | 5964100 | BLT-Hex .50-13X5.50 Gr5YWZC | ||
| 5 | 203959 | WLDT, Caster Yoke Ariens | ||
| 6 | 164145 | C-Spacer, 1.00 X 1.77 X .500 | ||
| 7 | D13008 | Bushing, 1.03 X 1.50 X .179 Y | ||
| 8 | D18076 | BRG, FLG 1.00X1.25X1.00 | ||
| 9 | 960703 | Manual, Owners Rapid XZ French | ||
| 10 | 3987459 | WLDT, Strut Front Wheel Ariens | ||
| 11 | 959995 | FTG, 1/4-28 STRGT Grease Zerk | ||
| 12 | 161397 | Pin, Klik .438X2.00 | ||
| 13 | 56155059 | Assembly, Discharge Shield Ariens | ||
| 14 | 6223100 | BLT-RDHDSQNK .50-13X1.50 G5YZ | ||
| 15 | 968087 | Locknut, 3/8-16 Nyloc Y | ||
| 16 | 4054951 | Bracket, Idler | ||
| 17 | 201010 | Belt, HB 80.3 EL Amd OHR | ||
| 18 | D18083 | Pulley, Narrow Spline | ||
| 19 | D13024 | Spacer, Spindle Top-Pulley | ||
| 20 | 3399703 | Washer, .75X1.3125X.120 | ||
| 21 | 6500031 | Locknut, 3/4-16 Crown GR 8 Y | ||
| 22 | 4057959 | WLDT, Belt Shield 36in.GRWLK ARI | ||
| 23 | 3820400 | Knob, 3/8 X 1.25 - 4 Prong | ||
| 24 | D33062 | Keeper, Spring | ||
| 25 | D38128 | Spring, Com 1.22X.162X2.50 Y | ||
| 26 | 6439300 | WSHR-FL-STL .380X1.50X.062 YWZ | ||
| 27 | D13023 | Bushing, .380 X 1.00 X .410 Y | ||
| 28 | D23040 | J-Bolt, 3/8-16 X 7.88 Y | ||
| 29 | TCU14540 | BRG, FLG M10XM25XM27 Fluted | ||
| 30 | 4056251 | WLDT, Idler Arm With Offset | ||
| 31 | D18032 | Pulley, Flat 5.00X.375 W/BRG | ||
| 32 | 964501 | Washer, .406X.813X.065 Flat Y | ||
| 33 | 5961400 | BLT-Hex .38-16X2.75 GR5 YWZC | ||
| 34 | 5901321 | Bolt, Hex 5/8-11 1.5in. GR8 YWZC | ||
| 35 | 50568000 | Assembly, 36in. Deck W/Decals Ariens | ||
| 36 | 03H1836 | Bolt, 3/8-16X3.50 CRG 5 Y | ||
| 37 | 963019 | Bolt, 3/8-16X1.00 CRG 5 Sn Y | ||
| 38 | 6200004 | BLT-RHDSSQNK .38-16X.75 G5YZ | ||
| 39 | 200262 | Assembly, Spindle S/O | ||
| 40 | D18055 | Washer, .630X1.50X.250 Flat Y | ||
| 41 | GDU10231 | Blade, 18.000 X .80 Lift | ||
| 42 | 967348 | Bolt, 5/8-11 X 2.00 Hex 8 Y | ||
| 43 | 999538 | Trim, Lock 1/4in. Edge |

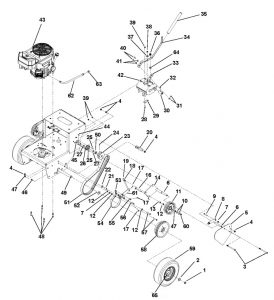

Engine and Traction Control
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5707300 | RG-RTNG-Ext 1.00X.078 | ||
| 2 | 6436300 | WSHR-FL-STL 1.010X1.505X.062YZ | ||
| 3 | 960062 | Bolt, 3/8-16X5.00 Hex 5 Y | ||
| 4 | 6545500 | Nut-LK-NYL-FLG .38-16 YWZC | ||
| 5 | 3296651 | Cover, Traction Belt | ||
| 6 | 5500835 | Bush.,S.385X.610X4.32 ST | ||
| 7 | 960502 | Nut, 3/8-16 STD Hex GR5 Y | ||
| 8 | 8346800 | SG-Tens .105X1.00X5.0 | ||
| 9 | 5958500 | BLT-Hex .38-16X1.75 GR5 YWZC | ||
| 10 | 6425500 | WSHR-FL-STL .375X1.125X.065YWZ | ||
| 11 | 7300039 | Asm, Idler 4in. | ||
| 12 | 964501 | Washer, .406X.813X.065 Flat Y | ||
| 13 | 5509000 | BSHG-SLV .375X.625X.1.000 | ||
| 14 | 3292251 | WMT - Wheel Clutching Arm -LH | ||
| 15 | 3292151 | WMT - Wheel Clutching Arm - RH | ||
| 16 | 6222400 | BLT-RDHDSQNK .38-16X3.50 G5YZ | ||
| 17 | 6714800 | Pin-Hair, Endries #25 YWZC | ||
| 18 | D33002 | Swivel, 3/8-24 | ||
| 19 | 3369100 | Rod, Brake Actuating | ||
| 20 | 3299151 | Plate, Bent Belt Finger | ||
| 21 | 8833400 | Bush.,S.391X.622X.950 ST | ||
| 22 | 6444000 | WSHR-FL-STL .406X1.00X.188 YWZ | ||
| 23 | 7328500 | Sheave-Drive 3.25 OD X .625 ID | ||
| 24 | 6005500 | SCR-Set .31-18X.38 SKHCUPDL | ||
| 25 | 6219900 | BLT-RDHDSQNK .25-20X.75 G5YZ | ||
| 26 | 5426400 | BRG-FLG .625X1.875X.797 | ||
| 27 | 5711900 | RG-RTNG-Ext .579X.035 | ||
| 28 | 5947700 | BLT-Hex .25-20X1.00 GR5 YWZC | ||
| 29 | 4923000 | Plate, Shift | ||
| 30 | 4901200 | Coupler | ||
| 31 | 6545400 | Nut-LK-NYL-FLG .31-18 YWZC | ||
| 32 | 959995 | FTG, 1/4-28 STRGT Grease Zerk | ||
| 33 | 4922951 | Bracket, Shift Lever | ||
| 34 | 3369851 | WMT, Shift Lever | ||
| 35 | 675200 | Grip, Handlebar | ||
| 36 | 2913100 | Switch-Neutral Start N.O. | (N.O.) | ||
| 37 | 6306700 | WSHR-LK .375X.130 YWZC | ||
| 38 | 6539400 | Nut-LK-CTR .375-24 YWZC | ||
| 39 | 6500012 | Nut-LK-NYL-FLG .25-20 YWZC | ||
| 40 | 960032 | Bolt, 5/16-18X3.25 Hex 5 Y | ||
| 41 | 6437200 | WSHR-FL-STL.344X.688X.065YWZC | ||
| 42 | 4901000 | Transmission | ||
| 43 | 8200612 | Engine, Kawasaki FS481 | ||
| 44 | 6608700 | Key-WDRF .19X.75 HRD #9 | ||
| 45 | 4923100 | Shaft, Half | ||
| 46 | 963033 | Bolt, 3/8-16X.750 CRG 5 LN Y | ||
| 47 | 6529600 | Nut-LK-CTR .38-16 YWZC | ||
| 48 | 5901507 | BLT-Hex.38-16X1.25FTHG5 EP80YZ | ||
| 49 | 3386800 | Shaft, Axle | ||
| 50 | 6400830 | WSH, FLT .765in.X.1.125in.X.187in. | ||
| 51 | 7400037 | Belt, Gear Drive 49in. EL Cog | ||
| 52 | 6416600 | WSHR-HRD-THRS 1.007X1.542X.062 | ||
| 53 | 8831951 | Link,Brake Arm | ||
| 54 | 8880600 | Asm, Brake Band, Pro | ||
| 55 | 6814800 | Pin-Clev .38X.75 YWZC | ||
| 56 | 6814900 | Pin-Clev .38X1.25 YWZC | ||
| 57 | 5963300 | BLT-Hex .38-16X2.00 GR5 YWZC | ||
| 58 | 7326900 | Assembly, Pulley & Drum | ||
| 59 | 7100239 | Assembly, Wheel And Tire 6X4.5 | ||
| 60 | 6537200 | Nut-LK-CTR-Jam .375-16 YWZC | ||
| 61 | 3371851 | WMT, Brake Actuating Lever | ||
| 62 | 4271700 | Drain, M20 Oil | ||
| 63 | 3873200 | Pipe Cap 3/8 NPT Female | ||
| 64 | 6400031 | WSHR-FL-STL, .563X1.00X18 GA | ||
| 65 | 5436500 | Bearing, 1in. Sealed |

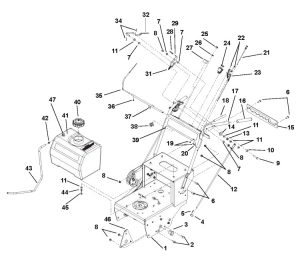

Handle Bar and Frame Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 50568002 | Ariens GRWLK Frame W/Decals | ||
| 2 | 6223600 | BLT-RDHDSQNK .38-16X1.00 G5YZ | ||
| 3 | 5517900 | BSHG-FLG 1.010X1.38X1.4X1.65 | ||
| 4 | D33002 | Swivel, 3/8-24 | ||
| 5 | 6714800 | Pin-Hair, Endries #25 YWZC | ||
| 6 | 5948700 | BLT-Hex .38-16X1.00 GR5 YWZC | ||
| 7 | 6433600 | WSHR-FL-NY .375X.75X.060 | ||
| 8 | 6545500 | Nut-LK-NYL-FLG .38-16 YWZC | ||
| 9 | 960052 | Bolt, 3/8-16X2.50 Hex 5 Y | ||
| 10 | 8553700 | BSHG-SLV .391X.688X.52 PM | ||
| 11 | 964501 | Washer, .406X.813X.065 Flat Y | ||
| 12 | 3371700 | Rod, Steering | ||
| 13 | 8338800 | SG-Comp .045X.600X.750 WLD7.5 | ||
| 14 | 6441000 | WSHR-FL-STL.50X1.25X.083 YWZC | ||
| 15 | 4950459 | Plate, Shift Lever Detent Arie | ||
| 16 | 4928800 | Grip, Handlebar | ||
| 17 | 7533300 | Caplug, Handlebar | ||
| 18 | 4924200 | Lever, LH-OP | ||
| 19 | 964013 | Locknut, 10-24 Nyloc Y | ||
| 20 | 6522900 | Nut-Hex .375-24 YWZC | ||
| 21 | 6944700 | Cable, Choke | ||
| 22 | 6116900 | SCR-MCH 10-24X.75 HWH YWZC | ||
| 23 | 6949100 | Cable - Throttle W/Liner | ||
| 24 | 4311800 | Switch, Clutch (With Graphic) | (With Graphic) | ||
| 25 | 7517700 | Cap - Ignition Switch | ||
| 26 | 6517400 | Nut- Panel .562-24 Greco | ||
| 27 | 4196515 | Meter, Hour INDCTV Recoil Eng | ||
| 28 | 4928700 | Grip, Thumb Latch | ||
| 29 | 4922600 | Latch, LH Thumb | ||
| 30 | 4922700 | Latch, RH Thumb | ||
| 31 | 8339300 | SG-Tens .041X.500X1.750 | ||
| 32 | 4905200 | Lever, Hand Control LH | ||
| 33 | 4922400 | Lever, Hand Control RH | ||
| 34 | 962008 | Pin, Cot .094X.750 Extp Y | ||
| 35 | 4924100 | Lever, RH-OP | ||
| 36 | 7415600 | SCR-Tap 8-32X.50 HWH TR YWZC | ||
| 37 | 4924000 | Weldment, Pivot Tube | ||
| 38 | 3602300 | Key Switch | ||
| 39 | 50568003 | Ariens GRWLK Handlebar W/Decal | ||
| 40 | 4952005 | Cap, Fuel Nonvent, Autolock | ||
| 41 | 4953200 | Assembly, Fuel Tank FF Clpe Walk | ||
| 4068910 | Valve, Combination | |||
| 4082700 | Grommet, Remote Vent Nitrile | |||
| 42 | 3278800 | Clamp, Fuel Line | ||
| 43 | 3832612 | Hose, Fuel 1/4 X 18.00 | ||
| 44 | 960602 | Washer, .375 Med SPRG Lock Y | ||
| 45 | 5959400 | BLT-Hex .38-16X.75 GR5 YWZC | ||
| 46 | 3384151 | Plate, Axle/Bearing Mounting | ||
| 47 | 9112300 | Fitting, Tank |

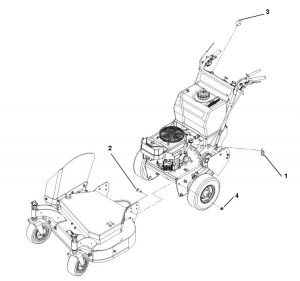

Oil Drain and Deck Connectin
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | AH89557 | P-Clip, .500 Insulated | ||
| 2 | 5958900 | BLT-Hex .50-13X1.25 GR5 YWZC | ||
| 3 | 9284600 | Key W/ Shield | ||
| 4 | 6500010 | Nut-LK-NYL-FLG .50-13 YWZC |
Rubber Discharge Sheild Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 6224100 | BLT-RDHDSQNK .38-16X1.25 G5YZ | ||
| 2 | 6530400 | Nut-SPNLK-FLG .312-18 YWZC | ||
| 3 | 3981959 | WLDT, Discharge Ariens | ||
| 4 | 3820400 | Knob, 3/8 X 1.25 - 4 Prong | ||
| 5 | 7533600 | Bumper, Rubber | ||
| 6 | 6223600 | BLT-RDHDSQNK .38-16X1.00 G5YZ | ||
| 7 | 6223600 | Shield, Walk Rubber Discharge | ||
| 8 | 6534900 | Nut-SPNLK-FLG .375-16 YWZC | ||
| 9 | 3983859 | Strap, Rubber Discharge Ariens |

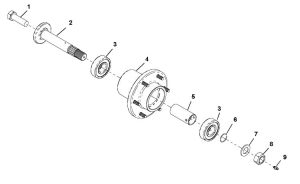

Spindle Assembly
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 967348 | Bolt, 5/8-11 X 2.00 Hex 8 Y | ||
| 2 | 200196 | Shaft, Spindle 3/4-16 | ||
| 3 | 200046 | Bearing, 6305LLC | ||
| 4 | 200042 | Housing, Spindle W/Studs | ||
| 5 | 200044 | Spacer, 1.250X1.000X2.780 | ||
| 6 | 200263 | Ring Retainer S/O | ||
| 7 | 3399703 | Washer, .75X1.3125X.120 | ||
| 8 | 6500031 | Locknut, 3/4-16 Crown GR 8 Y | ||
| 9 | 959995 | FTG, 1/4-28 STRGT Grease Zerk |

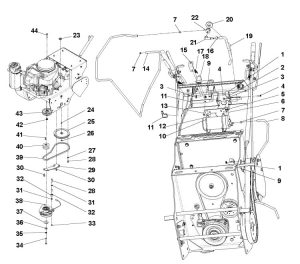

Transmission and Console
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | AH89557 | P-Clip, .500 Insulated | ||
| 2 | 6542300 | Nut-LK-FLG M8-1.25 YWZC | ||
| 3 | 6536000 | Nut-LK-NYL 10-24 W/Insrt YWZC | ||
| 4 | 6116900 | SCR-MCH 10-24X.75 HWH YWZC | ||
| 5 | 5970001 | BLT-Hex M8 X 1.25X14 YWZC | ||
| 6 | 4265351 | Bracket, Rov & CC Gear Walk | ||
| 7 | 4097715 | Clamp, DBL Pinch 5/16in.-7/16in. | ||
| 8 | 3832617 | Hose, PuRGe Line 3/16 GRWLK | ||
| 9 | 6500012 | Nut-LK-NYL-FLG .25-20 YWZC | ||
| 10 | 967006 | Cable Tie, .19 X 14.4 | ||
| 11 | 111910 | Cable Tie, .15 X 8.50 | ||
| 12 | 4058210 | 400 CC Carbon Canister 3/16 PT | ||
| 13 | 5946800 | BLT-Hex .25-20X.75 Gr5 YWZC | ||
| 14 | 3832619 | Hose, 3/16 Remote Rov-Canister | ||
| 15 | 4928951 | Bracket, Brake Link | ||
| 16 | 3278800 | Clamp, Fuel Line | ||
| 17 | 8337000 | Spring-Ext .047X.438X1.45 | ||
| 18 | 8828100 | Switch,Interlock | ||
| 19 | 3832618 | Hose, 1/4in. Tank-Remote Rov GRW | ||
| 20 | 4068925 | Grommet, Remote Rov | ||
| 21 | 7001632 | Elbow Fitting, 1/4 X 1/4 Assy | ||
| 22 | 4068920 | Valve, Remote Roll Over | ||
| 23 | 3384007 | Grommet:Rub:.88IDx1.38ODx.14GR | ||
| 24 | 6608700 | Key-WDRF .19X.75 HRD #9 | ||
| 25 | 7328600 | PLY-V 7.50 X .626 | ||
| 26 | 5711900 | RG-RTNG-Ext .579X.035 | ||
| 27 | 6308600 | WSHR-LK .31X.078 Reg YWZC | ||
| 28 | 5947000 | BLT-Hex .31-18X.75 GR5 YWZC | ||
| 29 | 4061951 | WLDT, Clutch Stop G2 | ||
| 30 | 5900013 | BLT-Hex .38-16X1.0 GR8 YZ EP30 | ||
| 31 | 6435800 | WSHR-FL-STL.312X.734X.065 YWZ | ||
| 32 | 7500007 | Bumper,Rubber .62X1.0X.88 LG | ||
| 33 | 6545400 | Nut-LK-NYL-FLG .31-18 YWZC | ||
| 34 | 5900037 | BLT-Hex .44-20X3.00 G5 YZ EP80 | ||
| 35 | 6309300 | WSHR-LK .44X.109 Reg YWZC | ||
| 36 | 6441000 | WSHR-FL-STL.50X1.25X.083 YWZC | ||
| 37 | 6443600 | WSHR-FL-STL .469X2.00X.25 YWZC | ||
| 38 | 200665 | Clutch Assembly, Ogura# GT1A-Hu02 | ||
| 39 | 7225500 | V-Belt, Ha-Raw Edge | ||
| 40 | 7300501 | Sheave,Engine 1.002IDx3.222Pin | ||
| 41 | 6606900 | Key-SQ .248X1.25X.248 | ||
| 42 | 6545500 | Nut-LK-NYL-FLG .38-16 YWZC | ||
| 43 | 7300039 | Asm, Idler 4in. | ||
| 44 | 6203200 | BLT-RDHDSQNK .38-16X2.00 SHTYW |
Wiring Diagram
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 3298705 | Harness, Wire GRWLK |
